Red Sea ReefMat 1200

ReefMat®

Smart - Plug&Play - Efficient

The ReefMat is a plug-and-play, fully automated, smart fleece roller filter that keeps your aquarium water crystal clear for weeks at a time.

Designed with the hobbyist in mind, the ReefMat features an easy-to-use fleece mat replacement system that allows you to switch rolls without needing to remove the filter from the sump or turn off the pumps.

ReefMat includes a fail-proof solid-state level sensor and an unprecedented smart drive unit that controls and monitors the exact length of fleece-mat that is used. ReefMat is Wi-Fi connected to Red Sea’s ReefBeat smart aquarium eco-system and will notify you if the fleece-mat gets torn or runs out, give you a heads up before it needs replacing, and even provide you with a daily usage log.

Features

• Plug-and-Play installation with multiple sump setup options.
• Easy fleece-mat replacement system.
• Efficient, high-flow, skimmer-friendly, 50 g/m2, non-woven polyester fleece-mat rolls.

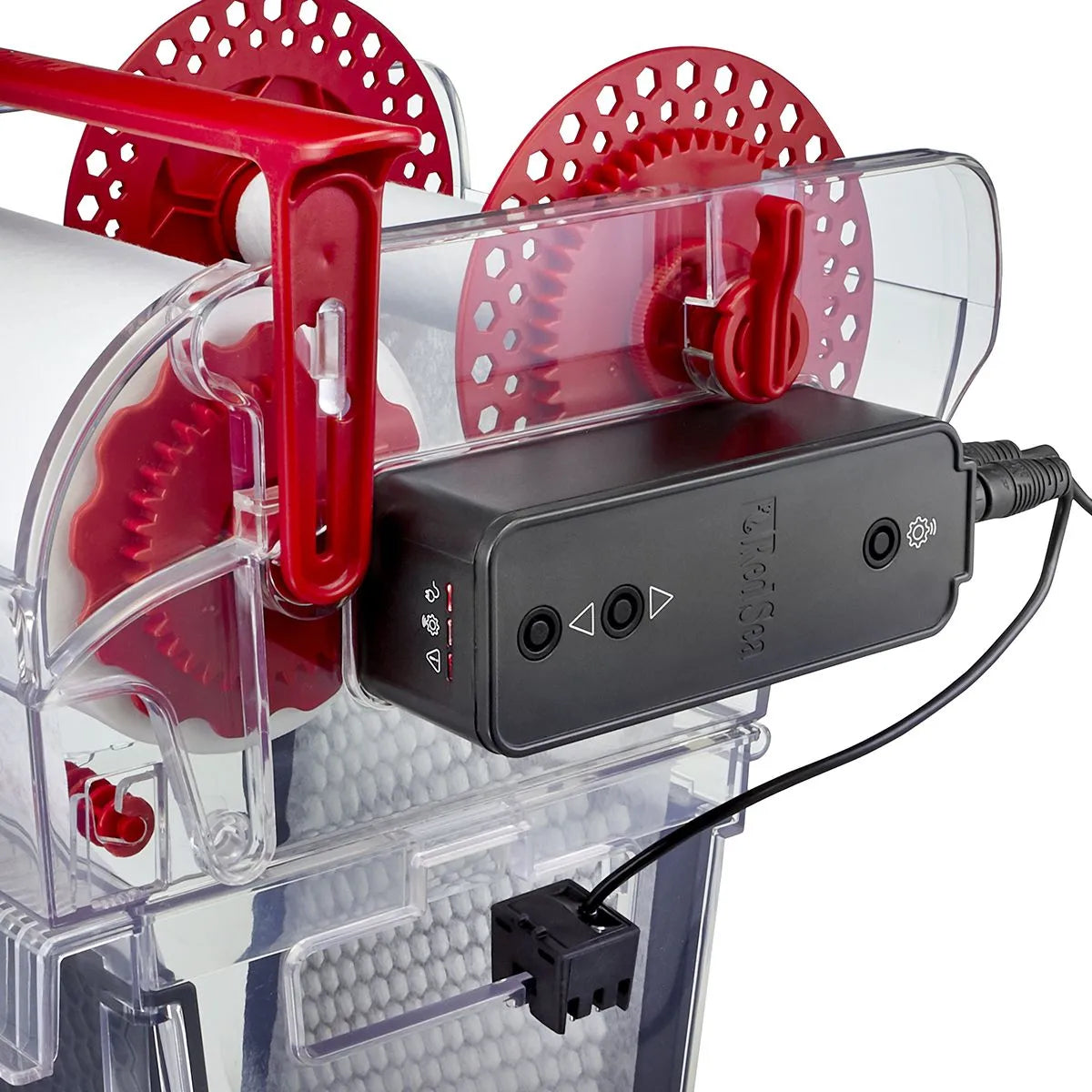

• Smart drive unit – connected to the ReefBeat ecosystem.
• Solid-State internal and external water level sensors (no moving parts).

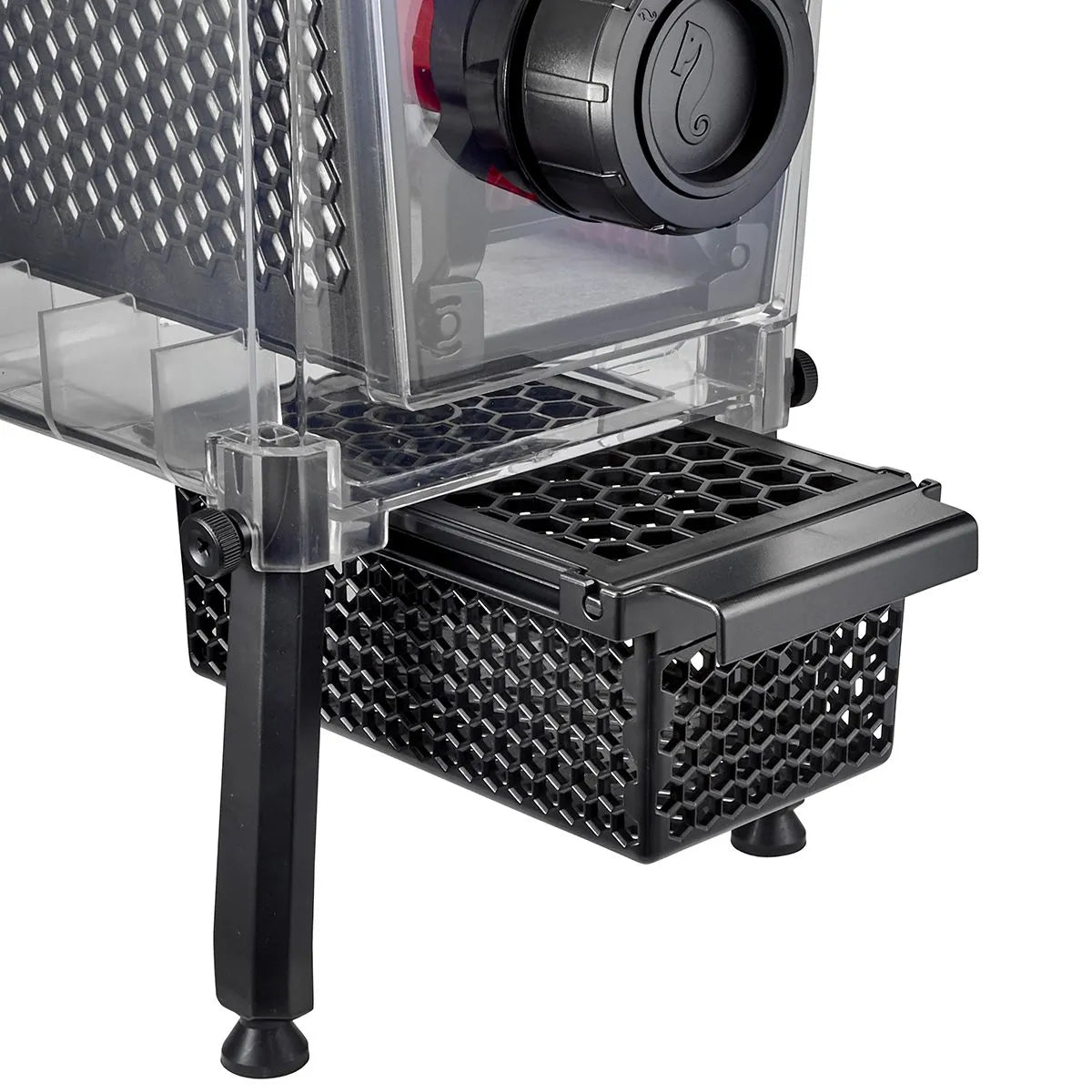

• Integrated media basket for additional chemical filtration.
• Kink-resistant, corrugated inlet hose with a USA/Metric PVC connector.

Note: Suitable for seawater aquariums only.

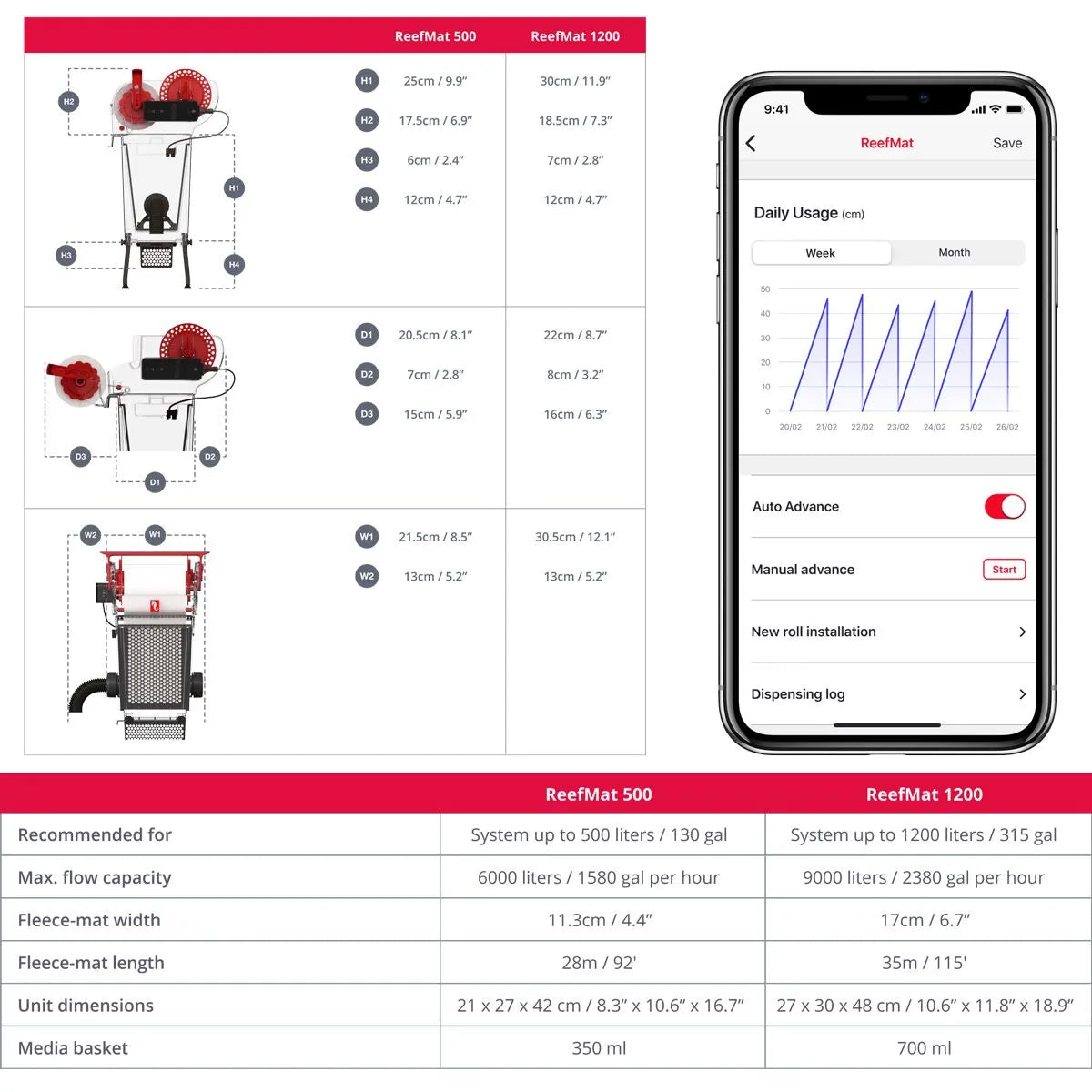

Specifications

ReefMat 500

• Recommended for: System up to 500 litres / 130 gal
• Max. flow capacity: 6000 litres / 1580 gal per hour
• Fleece-mat width: 11.3cm / 4.4"
• Fleece-mat length: 28m / 92"
• Unit dimensions: 21 x 27 x 42 cm / 8.3" x 10.6" x 16.7"
• Media basket: 350 ml

ReefMat 1200

• Recommended for: System up to 1200 litres / 315 gal
• Max. flow capacity: 9000 litres / 2380 gal per hour
• Fleece-mat width: 17cm / 6.7"
• Fleece-mat length: 35m / 115"
• Unit dimensions: 27 x 30 x 48 cm / 10.6" x 11.8" x 18.9"
• Media basket: 700 ml

App features

Peace of Mind

Timely notifications should the fleece mat get torn, stuck, or run out. In addition to the notifications, the ReefMat smart drive-unit will automatically shut off the motor until the roll is unblocked or replaced.

End of Roll MonitorDosing Pumps

Based on the average daily usage, ReefBeat lets you know your preferred number of days before the roll is due to end.

Performance Log

Continuously monitor performance with a detailed hourly & daily fleece-mat dispensing record for the current roll and overall stats for previous rolls.

Customized Dispensing

The length of fleece-mat dispensed can be customized, allowing for optimal system performance.

Mounting and installation

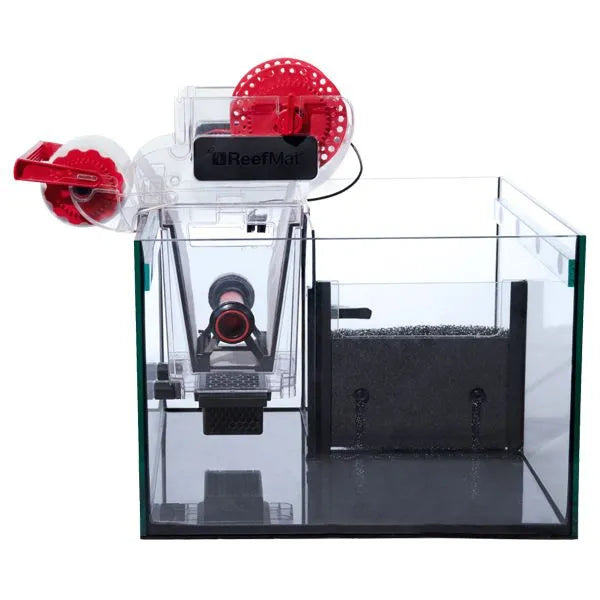

The ReefMat comes fully assembled, ready to use straight out of the box. For ease of operation, it is designed to hang on the front wall of the sump; however, it also has optional legs for a freestanding installation.

Both the drive unit and inlet hose can be positioned on either side of the ReefMat, as best suits each specific installation.

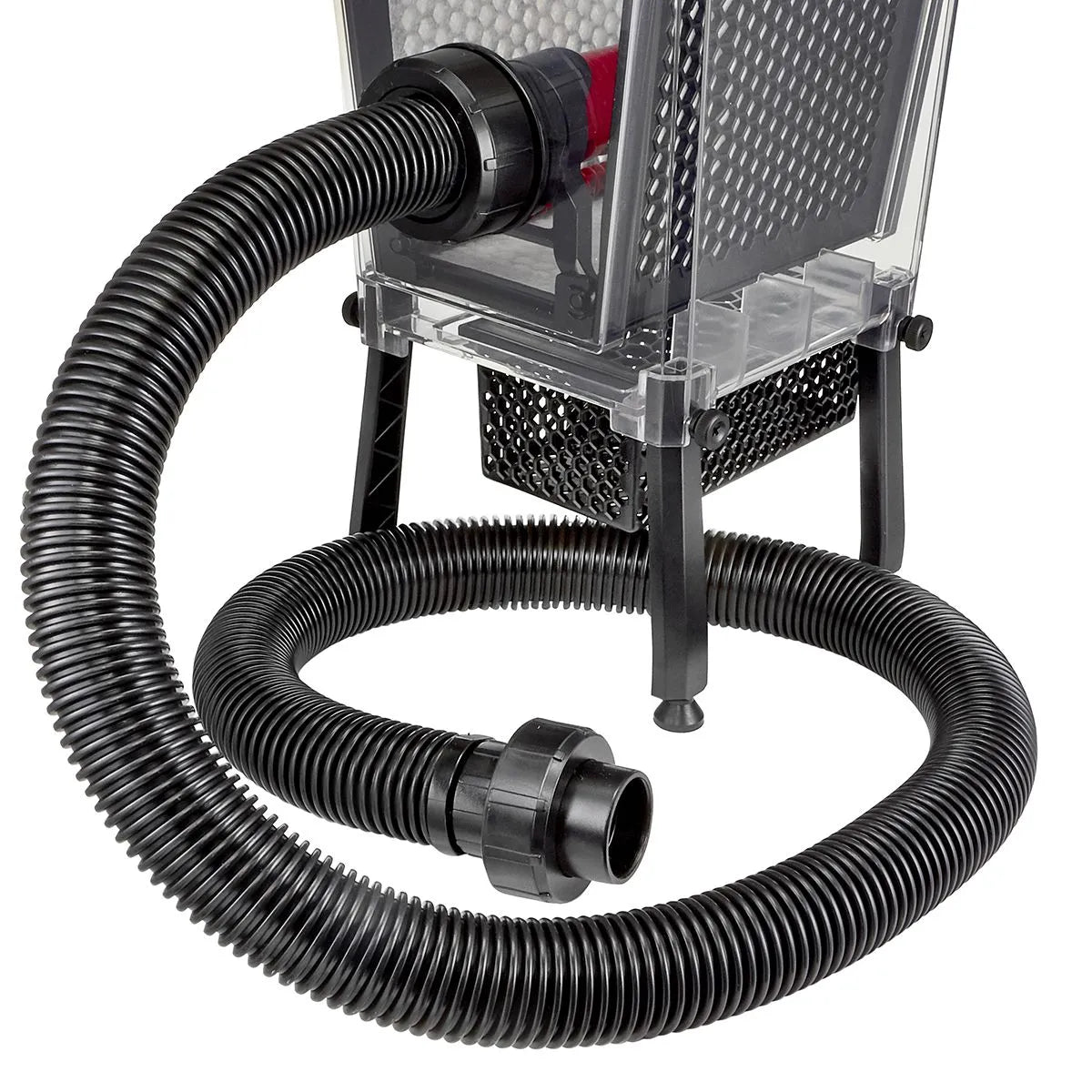

Kink-resistant, corrugated (32mm/1.25" ID) inlet hose with a PVC universal connector (suitable for both metric and USA piping) is provided to easily connect the ReefMat directly to the aquarium downpipe or dedicated feed pump.
