Red Sea MAX E-260 ReefLED Reef System

Red Sea MAX E-260 ReefLED Reef System

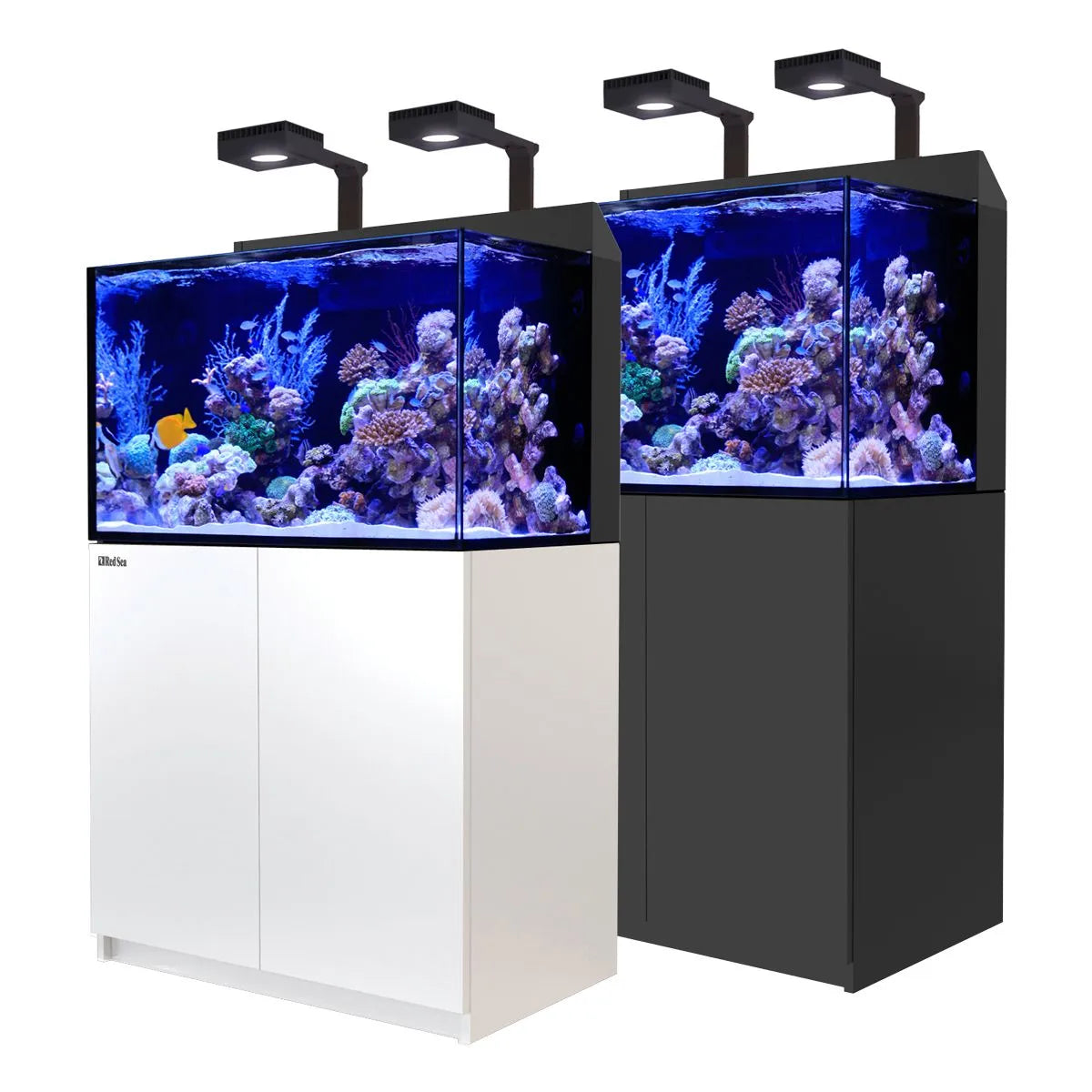

Step into high-performance reef keeping with the MAX E-260 ReefLED system — a complete, all-in-one package featuring ultra-clear rimless glass, professional filtration, WiFi-led lighting and a modern cabinet stand. With a display capacity of approximately 69 gallons (260 L), twin high-output LED lights, an integrated sump, and a sleek black or white exterior, it’s designed for both aesthetic appeal and robust coral growth.

Constructed with 12 mm ultra-clear low-iron glass for distortion-free viewing, the system delivers a stunning display while hiding the technical components behind a marine-spec cabinet. Lighting is handled by dual ReefLED units with built-in WiFi control, allowing you to schedule dawn/dusk, lunar effects, and simulate clouds via the companion app. Circulation is handled by twin pumps capable of moving over 4,300 Litres per Hour to ensure optimal flow. The modular rear-sump design supports a built-in skimmer and media rack, and offers future upgrades, such as a complete in-cabinet sump conversion. This system is ideal for reef hobbyists seeking a refined, turnkey solution for SPS, LPS, or mixed coral layouts.

Technical Highlights

• Display volume: ~69 gallons (260 L)
• Ultra-clear 12 mm low-iron glass, rimless design
• Dual ReefLED lighting units with WiFi and smart control
• Rear sump with REEF-SPEC protein skimmer, media rack, and circulation pumps
• One-plug power centre with multiple switched outlets

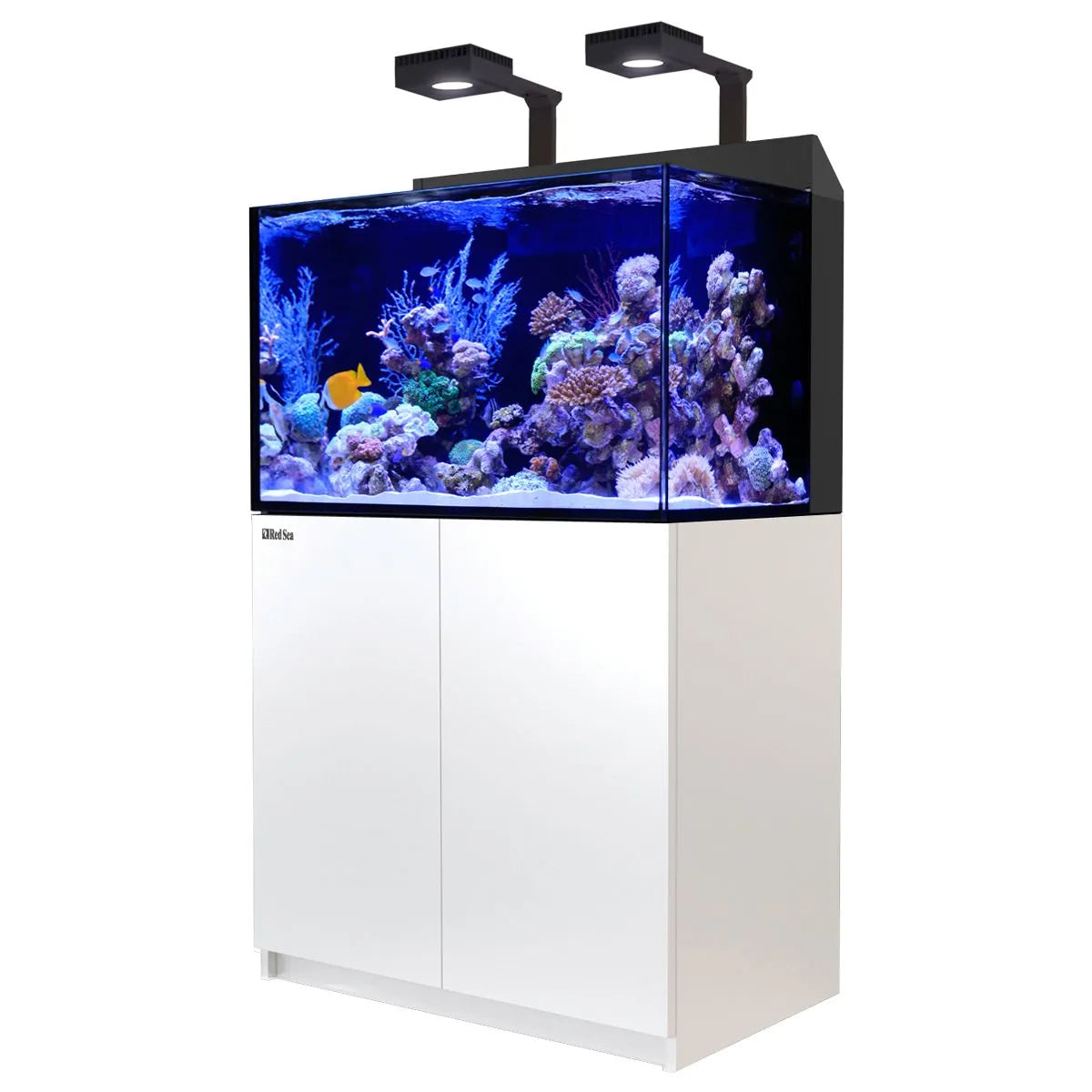

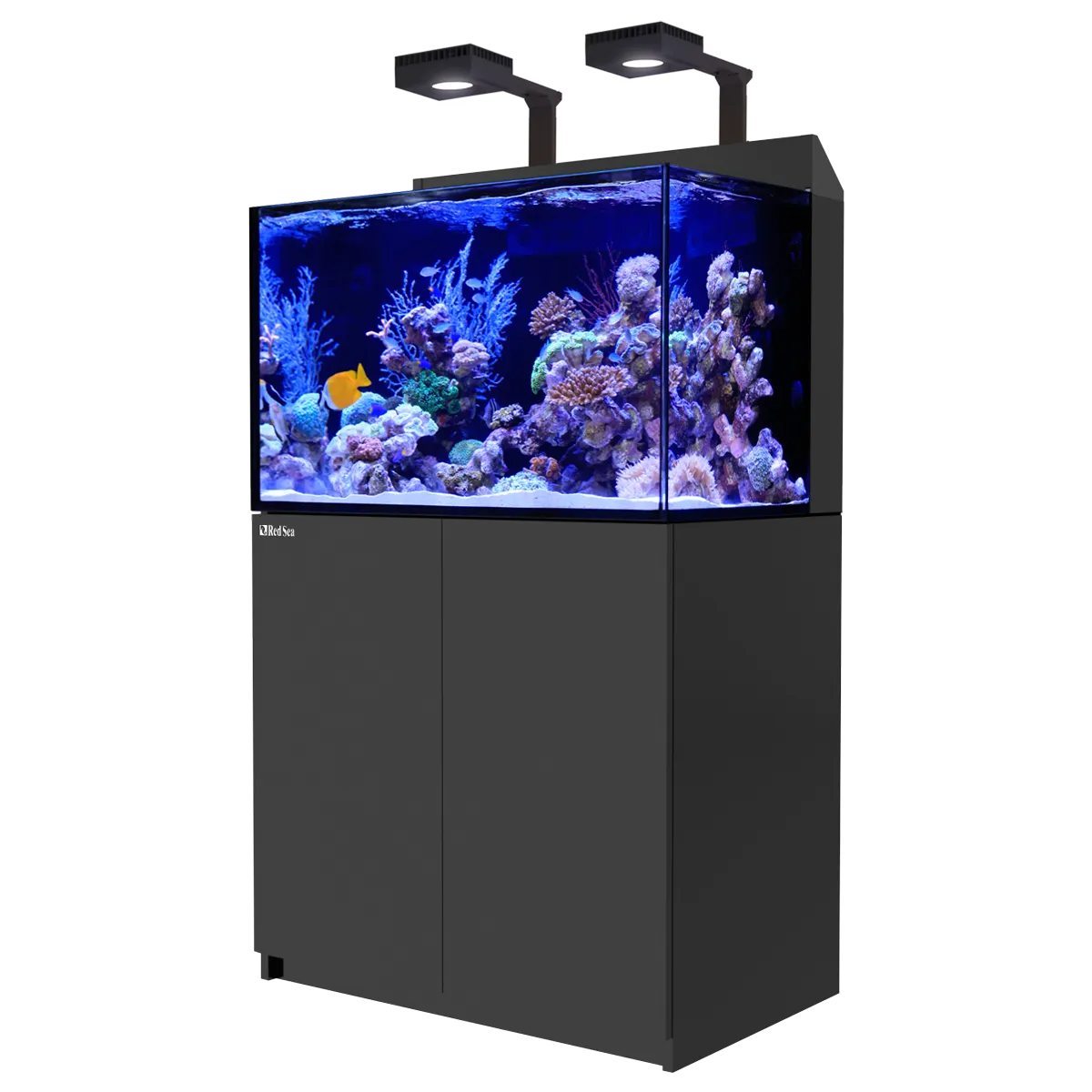

• Cabinet stands in Black or White alternative with soft-close doors
• Options to upgrade to a full in-cabinet sump for advanced setups

Red Sea MAX® E-Series Features

• System water volume (aquarium & sump): 260 L (69 gal)
• Aquarium volume: 213 L (56 gal)
• Rear Sump volume: 47 L (13 gal)
• Aquarium glass thickness: 12 mm (1/2")
• Lighting System: 2 units ReefLED 90W for a total of 180W
• Lighting control: WiFi-based system compatible with all iOS, Android, and WiFi-enabled Mac or PC
• Circulation: 2x 2150 lph (570 gph)
• Protein skimmer: MSK 900: 900 lph (240 gph) water flow - 250 lph (66 gph) air flow

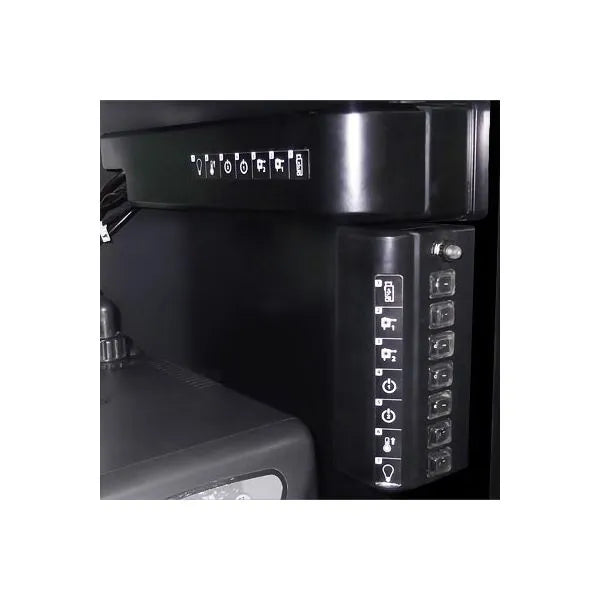

• Integrated power center: 7 outlets, individually switched sockets for pumps and accessories with circuit breaker
• Mechanical filtration: Low density sponge filter
• Chemical filtration: High grade phosphate-free activated carbon 400g (14 oz)
• Display tank LxWxH: 90cm (36") x 57.5cm (22.6") x 55cm (22")
• Height: Total height excluding LED 142 cm (56")

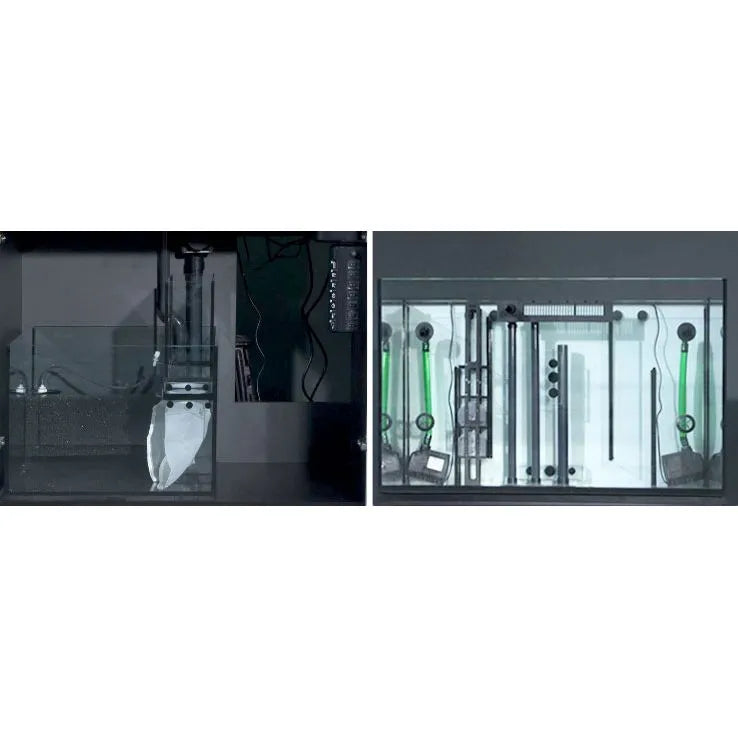

Optional In-Cabinet Sump

• Water volume: 46 L (12 gal)
• Water height: 20 cm (8")
• Skimmer chamber: 35x32 cm (13.8"x12.6")
• Pump chamber: 35x12 cm (13.8"x4.7")
• RO reservoir volume: 8 L (2.1 gal)
